MySQL高可用集群之MySQL-MMM

MySQL-MMM原理

就是两台Master服务器，两台Master服务器实现双主从同步，当一个出现故障，另一个便会顶上去作为正在使用的服务器，需要一个监控机来控制vip虚拟ip的偏移

该软件的三个工具
mmm_monitor：监控进程，负责所有的监控工作
mmm_agent：运行在每个MySQL服务器上的代理进程
mmm_control：提供管理mmm_mond进程的命令脚本

TOC

MySQL-MMM配置搭建

★准备工作★

一共需要5台服务器
监控机：192.168.31.110
master1：192.168.31.101
master2：192.168.31.104
slave1：192.168.31.102
slave2：192.168.31.103

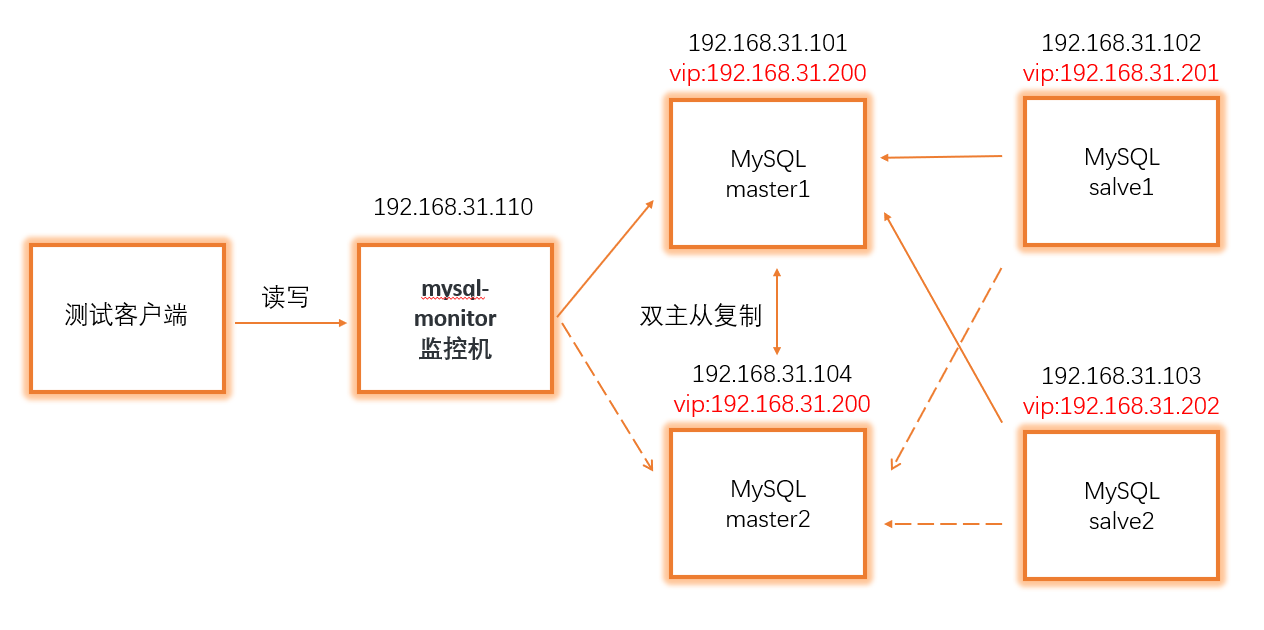

配置环境如下图所示：
mysql.003
全部服务器安装epel源：

yum install -y epel-release
yum clean all && yum makecache

配置master双主从复制

1.配置master1和master2配置文件
master1(192.168.31.101)：

vim /etc/my.conf
---------------------------
server-id = 1
log-bin = master-bin
log-slave-updates = true
relay-log = relay-log-bin
relay-log-index = slave-relay-bin.index

master2(192.168.31.104)：

vim /etc/my.conf
---------------------------
server-id = 11
log-bin = master-bin
log-slave-updates = true
relay-log = relay-log-bin
relay-log-index = slave-relay-bin.index

重启master1和master2的mysql服务

systemctl restart mysqld

2.查看两台服务器master_log_file和master_log_pos的值并实现双主从同步
master1(192.168.31.101)：

mysql> show master status;
+-----------------+----------+--------------+------------------+-----------------+
|File             | Position | Binlog_Do_DB | Binlog_Ignore_DB |Executed_Gtid_Set|
+-----------------+----------+--------------+------------------+-----------------+
|master-bin.000004|      154 |              |                  |                 |
+-----------------+----------+--------------+------------------+-----------------+
1 row in set (0.00 sec)

master2(192.168.31.104)：

mysql> show master status;
+-----------------+----------+--------------+------------------+-----------------+
|File             | Position | Binlog_Do_DB | Binlog_Ignore_DB |Executed_Gtid_Set|
+-----------------+----------+--------------+------------------+-----------------+
|master-bin.000001|      154 |              |                  |                 |
+-----------------+----------+--------------+------------------+-----------------+
1 row in set (0.00 sec)

master1(192.168.31.101)：
注意：这里master_log_file和master_log_pos的值取master2的

mysql> grant replication slave on *.* to 'myslave'@'192.168.31.%' identified by '123456';
Query OK, 0 rows affected, 1 warning (0.01 sec)

mysql> change master to master_host='192.168.31.104',master_user='myslave',master_password='123456',master_log_file='master-bin.000001',masterr_log_pos=154;
Query OK, 0 rows affected, 2 warnings (0.01 sec)

重启mysql服务之后查询

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.31.101
                  Master_User: myslave
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: master-bin.000001
          Read_Master_Log_Pos: 1196
               Relay_Log_File: relay-log-bin.000004
                Relay_Log_Pos: 666
        Relay_Master_Log_File: master-bin.000001
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes

master2(192.168.31.104)：
注意：这里master_log_file和master_log_pos的值取master1的

mysql> grant replication slave on *.* to 'myslave'@'192.168.31.%' identified by '123456';
Query OK, 0 rows affected, 1 warning (0.01 sec)

mysql> change master to master_host='192.168.31.101',master_user='myslave',master_password='123456',master_log_file='master-bin.000004',masterr_log_pos=154;
Query OK, 0 rows affected, 2 warnings (0.01 sec)

重启mysql服务之后查询

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.31.101
                  Master_User: myslave
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: master-bin.000004
          Read_Master_Log_Pos: 1196
               Relay_Log_File: relay-log-bin.000005
                Relay_Log_Pos: 666
        Relay_Master_Log_File: master-bin.000004
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes

配置slave从节点

1.配置文件

vim /etc/my.conf
---------------------------
server-id = 2
relay-log = relay-log-bin
relay-log-index = slave-relay-bin.index

2.主从复制master1
注意：这里master_log_file和master_log_pos的值取master1的

change master to master_host='192.168.31.101',master_user='myslave',master_password='123456',master_log_file='master-bin.000004',master_log_r_log_pos=154;

重启mysql服务查询
slave1(192.168.31.102)：

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.31.101
                  Master_User: myslave
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: master-bin.000004
          Read_Master_Log_Pos: 154
               Relay_Log_File: relay-log-bin.00005
                Relay_Log_Pos: 321
        Relay_Master_Log_File: master-bin.000001
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes

slave2(192.168.31.103)：

mysql> show slave status\G
*************************** 1. row ***************************
               Slave_IO_State: Waiting for master to send event
                  Master_Host: 192.168.31.101
                  Master_User: myslave
                  Master_Port: 3306
                Connect_Retry: 60
              Master_Log_File: master-bin.000004
          Read_Master_Log_Pos: 154
               Relay_Log_File: relay-log-bin.00005
                Relay_Log_Pos: 1411
        Relay_Master_Log_File: master-bin.000004
             Slave_IO_Running: Yes
            Slave_SQL_Running: Yes

安装MySQL-MMM

1.所有的服务器安装MySQL-MMM(一共5台服务器都需要安装)

yum -y install mysql-mmm*

2.所有4台mysql服务器创建授权MMM的账号

#授权monitor用户
grant replication client on *.* to 'mmm_monitor'@'192.168.31.%' identified by 'mmm123456';
#授权agent用户
grant super,replication client,process on *.* to 'mmm_agent'@'192.168.31.%' identified by 'agent123456';

3.所有的服务器配置mmm_common.conf文件(一共5台都需要配置)

vim /etc/mysql-mmm/mmm_common.conf
-----------------------------------------
active_master_role      writer

<host default>
    cluster_interface       eth0
    pid_path                /run/mysql-mmm-agent.pid
    bin_path                /usr/libexec/mysql-mmm/
    replication_user        replicant
    replication_password    slave
    agent_user              mmm_agent
    agent_password          agent123456
</host>

<host db1>
    ip      192.168.31.101
    mode    master
    peer    db2
</host>

<host db2>
    ip      192.168.31.104
    mode    master
    peer    db1
</host>

<host db3>
    ip      192.168.31.102
    mode    slave
</host>

<host db4>
    ip      192.168.31.103
    mode    slave
</host>

<role writer>
    hosts   db1, db2
    ips     192.168.100.200
    mode    exclusive
</role>

<role reader>
    hosts   db3, db4
    ips     192.168.100.201, 192.168.100.202
    mode    balanced
</role>

4.所有4台mysql服务器上配置mmm_agent.conf文件

vim /etc/mysql-mmm/mmm_agent.conf
----------------------------------------
include mmm_common.conf

# The 'this' variable refers to this server.  Proper operation requires
# that 'this' server (db1 by default), as well as all other servers, have the
# proper IP addresses set in mmm_common.conf.
this db1

this db1这里根据mmm_common.conf文件每台ip地址对应的名字改写
5.在监控服务器192.168.31.110上配置mmm_mon.conf文件

vim /etc/mysql-mmm/mmm_mon.conf
---------------------------------------
include mmm_common.conf

<monitor>
    ip                  127.0.0.1
    pid_path            /run/mysql-mmm-monitor.pid
    bin_path            /usr/libexec/mysql-mmm
    status_path         /var/lib/mysql-mmm/mmm_mond.status
    ping_ips            192.168.31.101,192.31.104,192.31.102,192.31.103
    auto_set_online     60

    # The kill_host_bin does not exist by default, though the monitor will
    # throw a warning about it missing.  See the section 5.10 "Kill Host
    # Functionality" in the PDF documentation.
    #
    # kill_host_bin     /usr/libexec/mysql-mmm/monitor/kill_host
    #
</monitor>

<host default>
    monitor_user        mmm_monitor
    monitor_password    mmm123456
</host>

debug 0

ping_ips填写上四台mysql服务器的地址
6.启动代理和监控服务

#监控服务器
systemctl start mysql-mmm-monitor

#4台mysql服务器
systemctl start mysql-mmm-agent

测试结果

查看群集情况：mmm_control show
在监控服务器(192.168.31.110)上查看集群情况

[root@test ~]# mmm_control show
  db1(192.168.31.101) master/ONLINE. Roles: writer(192.168.100.200)
  db2(192.168.31.104) master/ONLINE. Roles:
  db3(192.168.31.102) slave/ONLINE. Roles: reader(192.168.100.201)
  db4(192.168.31.103) slave/ONLINE. Roles: reader(192.168.100.202)

停掉192.168.31.101这台mysql数据库服务器再查看发现db1处于HARD_OFFLINE（离线状态，如下所示），master2(192.168.31.104)变成写数据的服务器

[root@test ~]# mmm_control show
  db1(192.168.31.101) master/ONLINE. Roles: writer(192.168.100.200)
  db2(192.168.31.104) master/REPLICATION_FAIL. Roles:
  db3(192.168.31.102) slave/ONLINE. Roles: reader(192.168.100.201)
  db4(192.168.31.103) slave/ONLINE. Roles: reader(192.168.100.202)

[root@test ~]# mmm_control show
  db1(192.168.31.101) master/HARD_OFFLINE. Roles:
  db2(192.168.31.104) master/ONLINE. Roles: writer(192.168.100.200)
  db3(192.168.31.102) slave/ONLINE. Roles: reader(192.168.100.201)
  db4(192.168.31.103) slave/ONLINE. Roles: reader(192.168.100.202)

再启动192.168.31.101这台mysql数据库服务器查看发现挂掉的服务器恢复在线状态（如下所示）

[root@test ~]# mmm_control show
  db1(192.168.31.101) master/AWAITING_RECOVERY. Roles:
  db2(192.168.31.104) master/ONLINE. Roles: writer(192.168.100.200)
  db3(192.168.31.102) slave/ONLINE. Roles: reader(192.168.100.201)
  db4(192.168.31.103) slave/ONLINE. Roles: reader(192.168.100.202)

[root@test ~]# mmm_control show
  db1(192.168.31.101) master/ONLINE. Roles:
  db2(192.168.31.104) master/ONLINE. Roles: writer(192.168.100.200)
  db3(192.168.31.102) slave/ONLINE. Roles: reader(192.168.100.201)
  db4(192.168.31.103) slave/ONLINE. Roles: reader(192.168.100.202)
